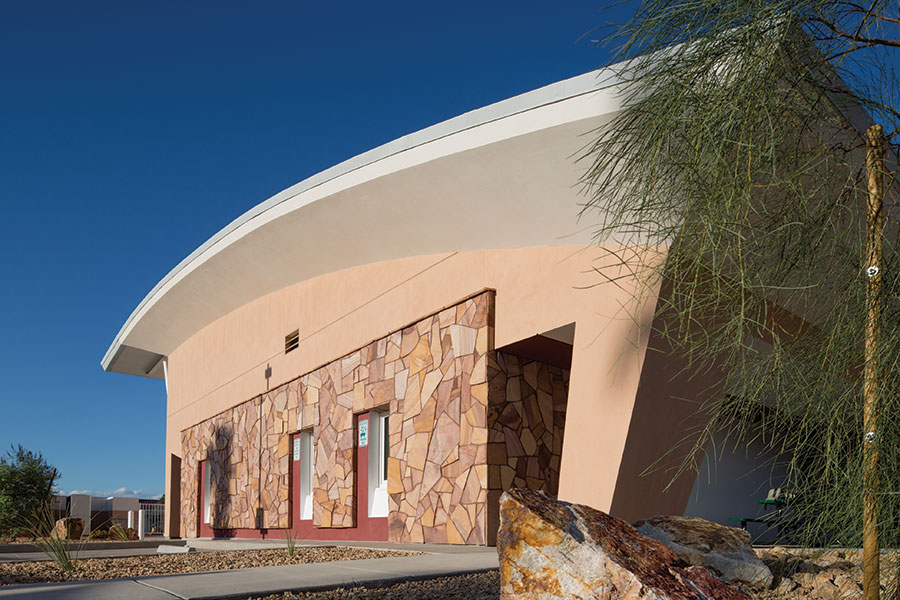

Fire Station 108 in Las Vegas, Nev., is one of a handful of commercial ICF projects that have already been certified under LEED v4 criteria. The building was awarded LEED-Silver in the New Construction category in Dec. 2014. ICFs helped earn points in energy efficiency, acoustical performance, and life-cycle
Across the construction industry, sustainability continues to be a hot topic. This is especially true in the ICF industry, as the foam-and-concrete building method is particularly well suited for green building due to being more energy-efficient and durable compared to more common building technologies.
For more than 15 years, the U.S. Green Building Council (USGBC) has defined “green” through their Leadership in Energy and Environmental Design (LEED) certification program, which awards building practices that the USGBC considers to be best-in-class. While there are other alternative green rating systems, notably the National Green Building Standard developed jointly by the National Association of Home Builders ( NAHB) and the International Code Council (ICC), none have the popular support and widespread acceptance enjoyed by LEED.
From the beginning, the criteria for LEED certification has been subject to political pressure, with lobbyists attempting to persuade others why their product, building method, or design values should receive LEED credit. The result of this jockeying is that by manipulating the scoring system, it was possible for a project to be LEED-certified without being particularly energy efficient or environmentally sensitive.
To resolve these issues, the USGBC announced a few years ago they were significantly revising LEED. The new version would require certified buildings to track actual energy and water usage so future versions of LEED could more accurately reward the best-performing structures. When the proposed changes were released in early 2012, though, they met with considerable resistance, including opposition from the EPS industry. Foam molders particularly opposed the controversial “Chemical Avoidance” and “Chemical Disclosure” credits, which would have disqualified ICFs from LEED certification because of the flame retardants used in the foam. Walter Reiter, who was deputy director of the EPS Industry Alliance at the time, explained, “The proposed credits are a departure from a building energy efficiency focus and would have encouraged de-selection of EPS insulation and many
Because of the numerous concerns, USGBC agreed to delay implementation at least 12 months to allow for further study and comment.
Rick Fedrizzi, president of the organization, said at the time, “This is 100% in response to our members’ desire that we give them a bit more time to absorb the changes in this next version of the rating system. We want to do everything we can to ensure that the market can fully embrace LEED v4 because it represents significant progress on carbon reduction and human health.”
Renamed LEED v4, the new version was finally released in November 2013. The system is so radically different from previous versions that it was phased in over 18 months, finally becoming mandatory in May 2015.
The new scoring system has some aspects that may favor ICFs, but other credits have been discontinued.
Although designed for the U.S., the Canada Green Building Council (CaGBC) is adopting LEED v4 for their nation as well. However, the Canadian version has minor differences. They state, “Because LEED v4 was developed in the United States, which mainly references U.S. standards, the CaGBC will be providing Canadian options to show compliance.” Termed “Alternative Compliance Paths” (ACP), these are usually equivalent Canadian standards that can be used in lieu of in the stated LEED requirements.
LEED v4 for Building Design and Construction (LEED v4 BD+C) emphasizes building system performance rather than individual products, in an effort to reward those with a lower total environmental impact. Because of the increased emphasis on energy savings—an area where ICFs have always performed strongest—the new rating system should favor ICFs.
Additionally, certified buildings now have to track actual energy usage for five years, which should demonstrate how ICF walls actually perform compared to other alternatives. If they perform as advertised, future versions of LEED scoring may encourage even more ICF use.
“In LEED v4 we’re turning on the light,” says Fedrizzi. “If you claim to be the best, if you claim to be healthier, prove it. Our world has put real data on building performance at our fingertips so we can understand and compare green building projects.”
As with previous versions of LEED, the new system also promotes sustainable materials and environmentally friendly design, construction and manufacturing methods.
Lionel Lemay, senior vice-president of sustainability at the National Ready Mixed Concrete Association (NRMCA) says, “Many credits… are refined but maintain the same intent. Others, such as Material and Resource (MR) credits, challenge product manufacturers to disclose their environmental, social and health impacts in third party validated reports.” This is done through encouraging the use of Industry-Wide Environmental Product Declarations (EPDs) which will be discussed at length later.
LEED v4 offers certification for eight different building types.
- New Construction/Major Remodel
- Core & Shell
- Data Centers
- Warehouses/ Distribution Centers
A minimum of 40 points are required to achieve LEED v4 certification. Silver level requires 50 points, gold level requires 60, and platinum 80 or more. In total, 109 credits are available in eight different categories, although several point options are mutually exclusive. The categories and number of points possible are:
- Location and Transportation (16 points)
- Sustainable Sites (10 points)
- Water Efficiency (11 points)
- Energy and Atmosphere (33 points)
- Material and Resources (13 points)
- Indoor Environmental Quality (16 points)
- Innovation (6 points)
- Regional Priority (4 points)
Francis Roma, technical director at Logix ICF, calculates
ICFs can contribute 32-35 points of the forty required, although
he cautions, “The total LEED point contribution… is a best estimate. The actual LEED point contribution may change based on project specifics, and should be determined by a LEED Accredited Professional for each project.” Additionally, his calculations are for Logix ICFs, which have 10% recycled content, use Greenguard Certified bead, and have third-party quality acceptance. Other
ICFs without these features may not qualify for all the points
In general, the categories in which ICFs can help earn points are as follows:
Sustainable Sites: Two points under “Protect or Restore Habitat.” Roma points out that ICF construction minimizes disturbance to existing natural areas by placing wall bracing inside the building footprint and keeping construction activity close to the building perimeter.
Energy and Atmosphere: Here’s where ICFs really shine. The continuous insulation and air barrier should contribute 18 points (16 for schools, 20 for healthcare) under the “Optimize Energy Performance” subcategory.
Indoor Environmental Quality: Five points in three subcategories, including acoustical performance, thermal comfort, and low VOC-materials.
Material and Resources: Seven points across five subcategories. With good waste management practices, ICFs should gain two points under “Construction/Demolition Waste” requirements, and three points more under “Life-Cycle Impact Reduction-Option 4 Whole Building Life Cycle Assessment.” The other four points are in the “Building Product Disclosure” subcategory; two for sourcing of raw materials, and the others for the environmental product declarations which ICFs and the concrete mix may qualify for.
Previous versions of LEED that have given credit for recycled material, such as fly ash concrete. However, since virtually all building materials qualified—more than 95% of steel is recycled, concrete is local, and wood is renewable—most of these credits have been removed.
Environmental Product Declarations
As already noted, the USGBC wants to make the total environmental impact of construction products more visible. To accomplish this, LEED v4 promotes the use of Environmental Product Declarations, which must be audited by an independent third party. A LEED-certified project must use at least 20 different products with EPDs.
Lemay, at NRMCA, says that for concrete, a “product” is defined by each unique mix supplied on the project. Since concrete can be used for multiple applications with different mix designs, it usually provides several products on a project.
In October 2014 the NRMCA published a report on concrete’s environmental impact specifically to address the product transparency requirements in LEED v4. This Industry-wide Environmental Product Declaration (IW-EPD) represents nearly 2,300 concrete plants across the U.S., and covers concrete’s impact on global warming, ozone, acid rain, smog, depletion of non-renewable energy resources, water consumption, and waste. Each of these impacts are evaluated for concrete from 2,500 to 8,000 psi, and in each strength class, various designs are considered from 100% portland cement mixes to mixes with over 50% replacement with fly ash and slag cement.
Most ICF companies have not yet published EPDs, but Roma says Logix uses EPS which carries EPD documentation.
From the beginning, the LEED rating system was intended to transform the way buildings are built, and over the past 15 years, has been remarkably successful in achieving this. Each new version has raised the bar for building design, construction and maintenance.
LEED v4, which became mandatory earlier this year, raises the bar dramatically. Lemay says, “LEED v4 will likely change the way design professionals, contractors and product manufacturers do business.”
The new rating system puts additional emphasis on energy savings and building life span, and monitors the actual energy usage of certified buildings for five years. These changes should favor ICF construction.
Perhaps LEED v4 will be the spotlight that allows this building technology to finally be noticed by the larger construction and design communities.
