Termites are more than just a nuisance. They cause an estimated $5 billion in damages every year in the U.S. And they have led to Insulated Concrete Forms (ICFs) being banned below grade in certain jurisdictions.

More than ten years ago, the ICF Association noted, “Termites pose a particularly difficult problem, [as] buildings should be insulated for energy savings, yet termites can infiltrate through any insulation and penetrate all but the strongest materials.”

Can ICFs be used safely in areas of heavy termite infestation? For above-grade construction, the answer is clearly yes. For below-grade applications the answer is more complicated. Here are the facts:

Termites will tunnel through untreated EPS foam

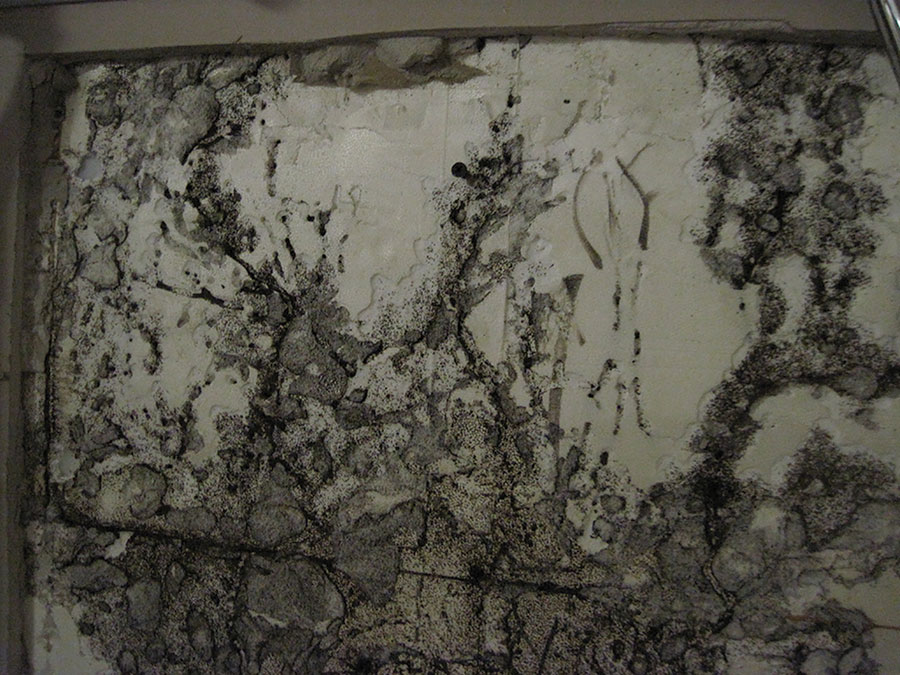

Termites will tunnel through untreated EPS foam, as this photo of an ICF basement clearly demonstrates.

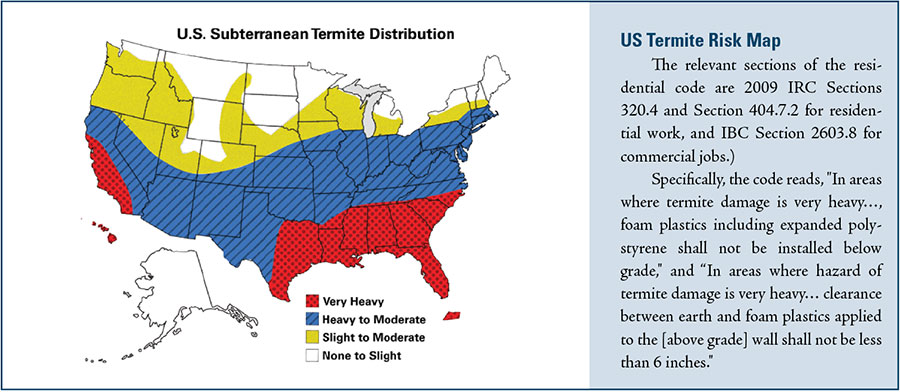

Termites live in most areas of the United States, but the vast majority of damage to structures (about 95%) is caused by subterranean termites that live in the warmer, wetter parts of the country. The U.S. Forest Service tracks areas of infestation, and have marked out regions where termite populations are low, moderate, heavy, or very heavy. See the map on page 24. Most of the Southeastern U.S. (Florida, Georgia, South Carolina, Alabama, Mississippi, Louisiana, and the eastern half of Texas) have “very heavy” termite risk, as does all of Hawaii and the entire state of California.

In these regions, building codes ban the use of all below-grade rigid foam unless an “approved method of protection” is used to gain an exemption. Note that conditions vary by neighborhood, and local code officials may require termite protection outside the “very heavy” areas indicated on the map.

The Risk

Termites avoid light, are attracted by moisture, and eat only wood or wood-based materials. Neither the Expanded Polystrene (EPS) foam nor the polypropylene webs provide any nutritional value to the termites. However, the insects burrow through the foam anyway, seeking food sources elsewhere in the structure.

Because the structural strength of an ICF wall is in the concrete, termites cannot compromise the strength or integrity of an ICF wall assembly, like they could with a wood framed home. However, they can burrow through the foam to reach untreated wood making up the walls, floors, or roof. Even worse, the foam allows them to work undetected, and makes treatment difficult or impossible.

Brian Corder, marketing director at BuildBlock, agrees, “it is a misconception to say that ICF homes are termite-proof since termites can tunnel through the EPS foam and remain unseen.”

A paper published in 2012 by Clemson University’s Department of Pesticide Regulation confirms, “Termites can use the below-grade insulation as an easy conduit into a structure by tunneling through the foam or between the foam and masonry. Because insulation is hidden from view by siding, wood, paint, stucco, etc., the termites can remain undetected until significant damage has occurred.”

building code language currently states: “In areas where hazard of termite damage is very heavy… clearance between earth and foam plastics applied to the [above grade] wall shall not be less than 6 inches” and “In areas where termite damage is very heavy…, foam plastics including expanded polystyrene shall not be installed below grade.” Corder says this blanket ban is an overreaction, and does not allow for the many solutions that have been developed to keep termites out of the foam.

There are actually a number of strategies that have proven successful. The code itself allows for two: First, when all interior partition walls and roof trusses are built of a non-combustible material such as steel studs or pressure treated lumber. This will deny the termites a food source anywhere in the structure. Second, use of an approved method for protecting the foam plastic. These includes membranes, sand barriers, and foam treated with insecticide during the manufacturing process. However, the definition of “approved protection” varies widely between jurisdictions and inspectors. Here are a few of the options:

Sand Barriers

In some areas, a sand barrier can qualify. The sand layer must be at least 6″ thick under and around the ICFs. Additionally, the stone particles must be of a specific size and density; small enough that termites can’t squeeze between them, but heavy enough that the insects can’t move them. Common options include 16-grit sand made from lava or basalt, and a proprietary crushed granite product called Granitgard.

Membranes

Some membrane materials have been shown effective at protecting below-
grade foam.

Quad-Lock claims that their proprietary MDPEEL 40 waterproofing membrane, made by Soprema, is an effective termite guard as well. It’s a private label version of Soprema Colphene ICF, also sold as Resisto Foundation/ICF Waterproofing Membrane. A technical bulletin issued by Quad-Lock explains how the test was conducted: “The two most common species of termites (Formosan Termites and Eastern Subterranean Termites) were placed on ten temperature and humidity controlled test samples of waterproofing membrane, which had a food source on the other side, for a period of 25 days. Microscopic inspection revealed ‘no evidence of excavation or penetration by termites’ in any test samples, which constitutes a ‘Pass’ as a termite barrier.”

Polyguard XT and Tamko TW-60 have a similar chemical composition and thickness so they’d be expected to perform similarly, but have not been specifically tested for this use.

The technical department at Fox Blocks recommends Polyguard Products, Inc. 650 XTM or 650 XTP waterproofing and termite protection membrane, saying, “These two products have been evaluated and approved by SBCCI PST & ES to be used as both a waterproofing and a termite protection membrane for ICFs.” (SBCCI is the Southern Building Code Congress International, a code body that regulated most construction in the southeastern U.S. for much of the 20th century until it unified with the IRC/IBC in the mid 1990s.)The SBCCI PST & ES evaluation report number is #2136.

Other materials, such as the stainless steel mesh Termimesh, might also qualify. It would be installed on the outside of the waterproofing. In some areas, cementitious coatings are considered impervious to termites.

However, even though these methods have some success in the lab, they may not satisfy local building officials. The 2012 Clemson study cited earlier warns in bold type, “Waterproofing or coating the foam insulation will not keep termites out.”

Termite Shield

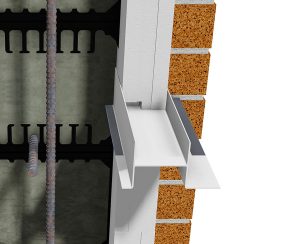

Termite shields are made from metal or durable plastic and placed as a cap extending across the full width of the ICF sidewall. The concept is to force the termites out of the sheltered environment of the foam. As the insects avoid light, they will create a mud-walled tube to travel in. The termite shield will force the bugs to build these telltale mud tubes over the barrier, and will alert an inspector to their presence. To be clear, the termite shield doesn’t actually block their travel; it merely forces them into the open.

BuildBlock recently introduced BuildShield specifically for this application.  “BuildShield Termite is the only ASTM E283 tested solution for ICFs in termite prone areas,” says Corder.  The product is made from PVC extrusion track and stainless steel, and extends from inside the concrete core to the exterior wall finish. Unlike other shields that simply force termites to the exterior, BuildShild  ties to the exterior finish to create an impenetrable barrier.  This product is  compatible with any ICF systems using a 2.5″ thick foam panel.

Another solution that forces termites into the light is to remove the exterior foam in a six-inch strip around the entire building just above grade. This “inspection strip” allows mud tubes to be discovered. If mud tubes are present, a pest control company would need to come and treat the home to prevent damage.

In some parts of the country, this is more difficult than it sounds. In November 2014, two University of Florida professors published a paper outlining the challenges of termites in below-grade foam. They write, “Because foam boards are impermeable to liquid insecticides applied to the soil, termites in the boards are unaffected by the insecticide treatments and continue to use the foam boards as a pathway into the structure. Because of these problems, many termite control companies either refuse to treat structures with foam board insulation or offer no guarantee for the treatments.” They state that fully one-third of the 225 pest control companies surveyed refused to treat houses with foam insulation, and of those that did offer treatment, only a third offered any sort of guarantee of effectiveness.

Perhaps this is why the Clemson study and the codes recommend starting all foam insulation six inches above grade to provide for inspection and treatment, and stripping the outside foam face off all ICFs used below grade.

Treated Foam

New technology may be a game-changer. A new insecticide, imidacloprid, has proven to be extremely effective in rendering EPS termite-resistant.

In the past, borate has been used, but time has shown that it “does not provide sufficient protection against burrowing insects when used with EPS.” Imidacloprid is different. It’s a neonicotinoid, chemically similar to the nicotine compounds that keep tobacco leaves pest-free. It was originally developed as an agricultural pesticide in the mid-1990s, and then was used in pressure-treated lumber as that industry phased out more dangerous copper arsenic products. In 2011, the chemical company Lanxess obtained EPA approval to use imidacloprid in EPS foam under the name Preventol TM-EPS.

Imidacloprid is fully certified by the International Code Council Evaluation Services (ICC-ES) as an approved treatment against insect attacks on EPS (see ICC-ESR 2918), and meets the requirements of ICC-ES AC239, Acceptance Criteria for Termite-Resistant Foam Plastics.

Andy Lennox, vice president of marketing solutions at Logix, explains, “Unlike borate, imidacloprid is organic and safely and effectively protects EPS foam panels from termites.”

Logix offers an entire line of termite-resistant ICFs molded with this insecticide, called Logix TX. Lennox says, “With Logix TX, each individual foam bead that makes up the EPS panel is coated with imidacloprid, which protects the panels from termite damage without affecting the material properties of EPS. Since each bead is individually protected, Logix TX kills termites before they chew through the outer surface of the form panels.”

He continues, “Normally foam products are not used at or below grade in areas categorized as having ‘very heavy’ termite concentrations. Now, homeowners and building owners in very heavy termite areas can confidently and securely enjoy the long term benefits of building with insulated concrete forms.”

BuildBlock is another major ICF brand that offers termite-resistant forms. Like the Logix product, each individual bead is coated, so the protection extends the full thickness of the ICF. Corder says, “BuildBlock Building Systems currently offers this product in our Orlando, Florida facility, and is planning to expand this offering in the future.”

He continues, “BuildBlock believes this is the best solution, and should be used exclusively below grade in high termite infestation areas, as well as for the first few courses above grade.”

Details

Even with termite-resistant foam available, details must be addressed. The labels for imidacloprid state, “Preventol TM-EPS is intended only for the control of termites infesting construction grade polystyrene foam and will not… substitute for mechanical alteration, soil or foundation treatment. The use of foam treated with Preventol TM-EPS is not sole protection against subterranean termites.”

Additional precautions include carefully sealing all pathways through the wall. Penetrations through the wall for utility lines or outdoor electrical receptacles should always be sealed. Cracks or expansion joints should be filled with silicone caulking or cementitious mortar. Cold joints can also be sealed with waterstops or other mechanical seals that are embedded into the concrete.

Yard maintenance is also important. Subterranean termites need food,
warmth and moisture in order to survive, and if cut off from any of these three necessities, will either die or go elsewhere. The more barriers created, the more likely they will pass by. As one termite expert says, “If it’s difficult and uncomfortable
for them to reach the edible portions of your home, they’ll keep to the woods where they belong.”
